Märklin 37066

Our “eighties”
There are Märklin locomotives that trigger strong emotions for many model railroaders. The brawny class 80 steam tank loco is one of these small but mighty Märklin icons. A model of this powerful switcher rolled into the Märklin range as far back as the early 1950s as the legendary TM 800 and delighted model railroaders, young and old, especially because of its affordable price. It was subsequently followed by countless improved versions of the “Eighty,” which eventually became one of the most popular Märklin steam locos. This was certainly also due to the interesting prototype. When 39 units of the class 80 were delivered to the pre-war German State Railroad Company between 1927 and 1929 as a standard-type switcher, it was a highly modern and extremely powerful loco type. Although the German Federal Railroad (DB) retired the last of these six-coupled locos, which could generate in excess of 500 hp, as early as 1964, numerous locomotives found grateful customers at works railroads in North Rhine-Westphalia and Lower Saxony, where the last examples could still be admired until the end of the steam era in the 1970s. As a result, many railroad and model railroad fans were able to experience the “eighties” live under steam. Seven machines survive to this day, while road number 80 036, owned by the Dutch “Veluwsche Stoomtrein”, is currently being refurbished. It is due to be back in steam in 2026. To coincide with this event, Märklin presents a completely revised version of this classic design. Equipped with the latest technology and offering a clear view through the engineer’s cab, the new class 80 is sure to captivate many generations of young and old Märklin fans.

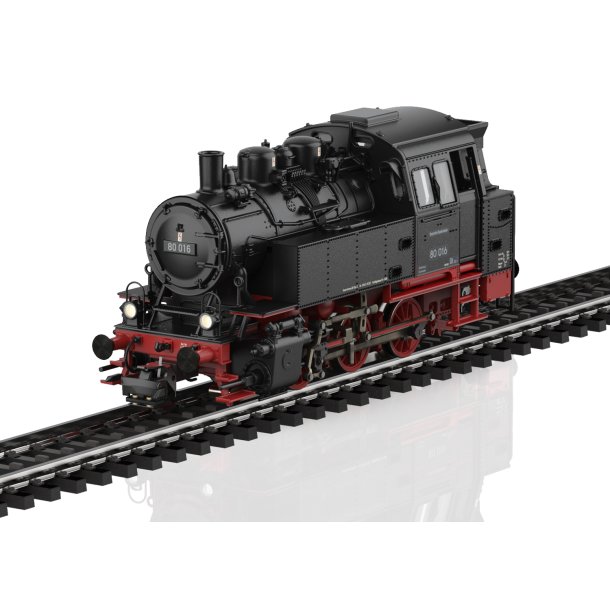

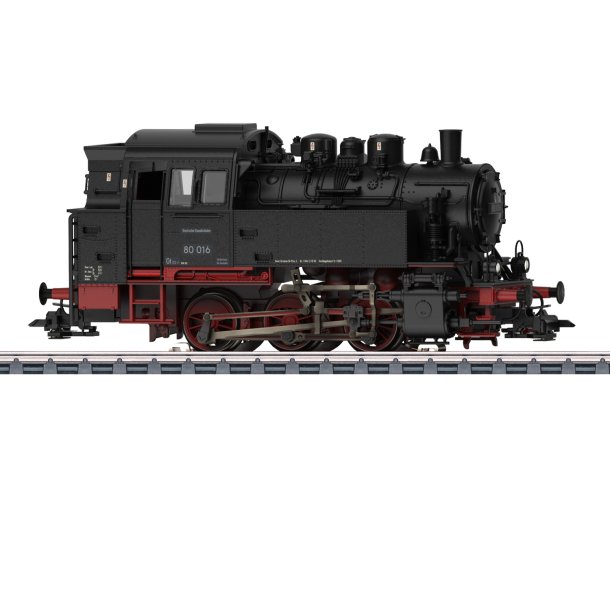

Prototype: German Federal Railroad class 80 tank locomotive. This is a version with three boiler domes, a bell, and a turbo dynamo on the left, a smokebox door without a central lock with the number sign in the middle. Deep black basic paint scheme. Road number 80 016. The locomotive looks as it did around 1953.
Model: The loco has an mfx+ digital decoder and extensive light and sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. Three axles powered. Traction tires. Locomotive made mostly of metal. Smoke generator kit fitted as standard. The dual headlights change over with the direction of travel. They and the smoke generator contact will work in conventional operation and can be controlled digitally. Lighting with maintenance-free warm white LEDs. A buffer capacitor is fitted. The front and rear Telex couplers can be controlled separately in digital operation. Numerous separately applied grab irons and pipes. The buffer height conforms to NEM specifications. Brake lines are included as parts that can be applied separately. Length over buffers 11.1 cm / 4-3/8.

A DC version of this model is available in the Trix H0 range as item 25080.Matching freight cars dedicated to the theme of smelting ovens are available in the Märklin H0 range as items 46014, 46047, 46146, 46221, and 48678.You will also find a matching building kit of blast furnace 2 at the Duisburg Meiderich ironworks as an anniversary model to celebrate 80 years of Faller in the Faller range.www.faller.de

NYHED 2026
